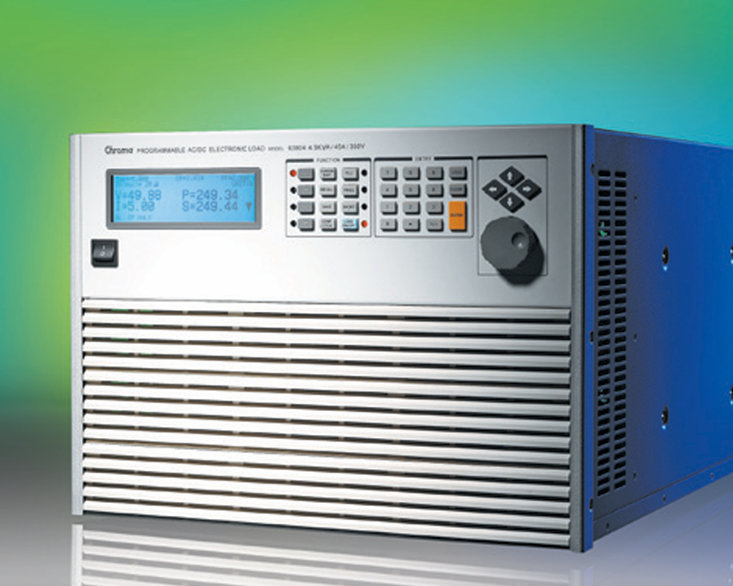

63800-EN

Chroma’s 63800 Series AC&DC Electronic Loads are designed for testing Uninterruptible Power Supplies(UPS), Off-Grid Inverters, AC sources and other power devices such as switches, circuit breakers, fuses and connectors.

Request a quote?

Features

  • Power Rating: 1800W, 3600W, 4500W
  • Voltage Range: 50V ~ 350Vrms
  • Current Range: Up to 18Arms, 36Arms, 45Arms
  • Peak Current: Up to 54A, 108A, 135A
  • Parallel / 3-Phase Function
  • Frequency Range: 45 ~ 440Hz, DC
  • Crest Factor Range: 1.414 ~ 5.0
  • Power Factor Range: 0 ~ 1 lead or lag (Rectified mode)
  • CC, CR, CV, CP for DC Loading
  • Constant & Rectified Load Modes for AC Loading
  • Analog Voltage & Current Monitor
  • Timing Measurement for Battery, UPS, Fuse and Breaker tests
  • Measurement: V, I, PF, CF, P, Q, S, F, R, Ip+/- and THDv
  • Short circuit simulation
  • Full Protection: OP, OC, OT protection and OV alarm
  • GPIB & RS-232 interfaces
